Cartoning Machine

SCROLL DOWN

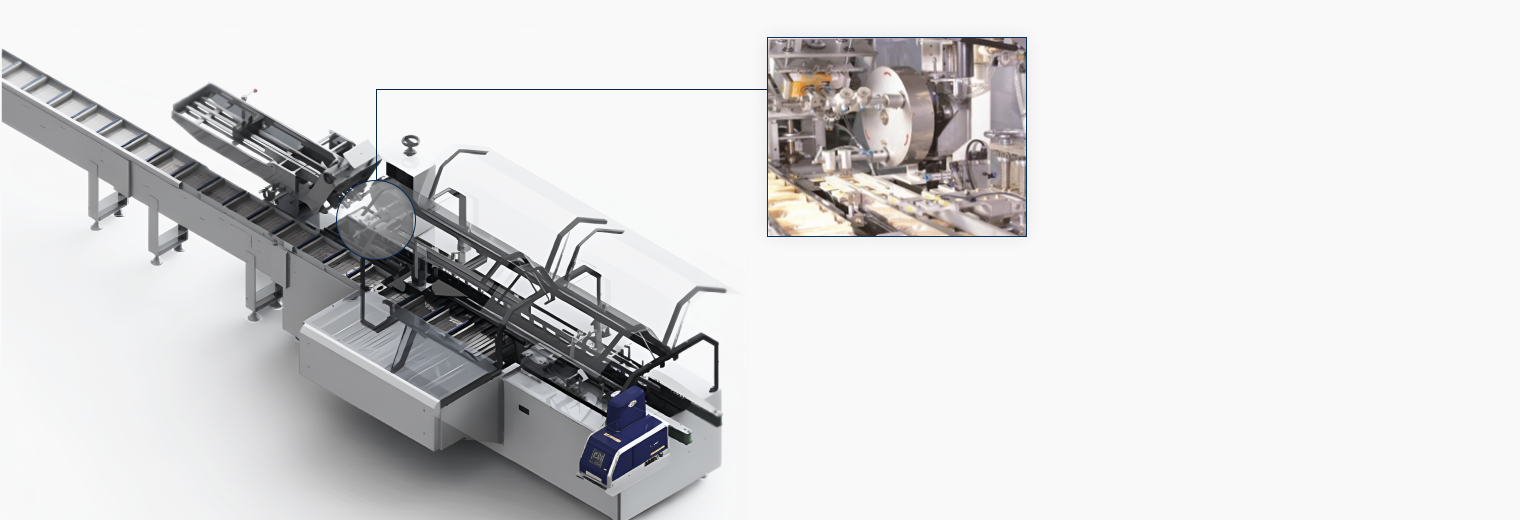

Equipment that automatically performs
the processes of flap folding,
hot melt glue spraying, sealing and
discharging after inserting
the product transferred to the bucket
conveyor into the carton extracted
and formed from the carton magazine

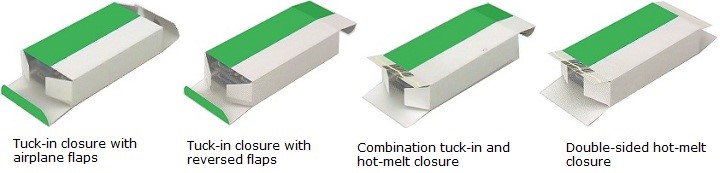

  • Can be sealed in various ways such as sleeve (open type), flap tuck-in type,
    and hot-melt type depending on the shape of the carton
  • Can be applied to products of various types and sizes, such as food,
    confectionery, pharmaceuticals, cosmetics, and miscellaneous goods

Various Carton shapes & Sizes
Available

  • Square, Triangle, Round, Hexagon, octagon, Gable, etc. applicable to various shapes
  • Min 101.6 Pitch to 381.0 Pitch applicable to various sizes

Applicable Carton Pitch

  • 101.6Gum, Blister, Bottle, etc.
  • 114.3Blister, Bottle, etc.
  • 152.4, 190.5, 228.6, 304.8, 381.0Various sizes of big cartons
Specification 6 Inch
(152.4 Pitch)		 7.5 Inch
(190.5 Pitch)		 9 Inch
(228.6 Pitch)		 12 Inch
(304.8 Pitch)
Machine Size
(mm)		 Length (Bucket con’v not included) 3,180 3,520 3,520 3,940
Width (Cover included) 1,855
Height (Cover included) 1,430
Carton Discharge Height 860
Applicable
Carton Size
(mm)		 Length 105 ~ 250 105 ~ 250 105 ~ 250 105 ~ 250
(Wide 105 ~ 370)
Width 45 ~ 95 85 ~ 135 120 ~ 170 160 ~ 245
Height 20 ~ 65 20 ~ 65 20 ~ 65 20 ~ 65
Production
Capacity		 General Speed (1/20) 160 125 105 80
Speed Range (70Hz~25Hz) 185 ~ 65 145 ~ 55 120 ~ 45 90 ~ 35
Max Speed (1/15, 60Hz) 210 170 140 105

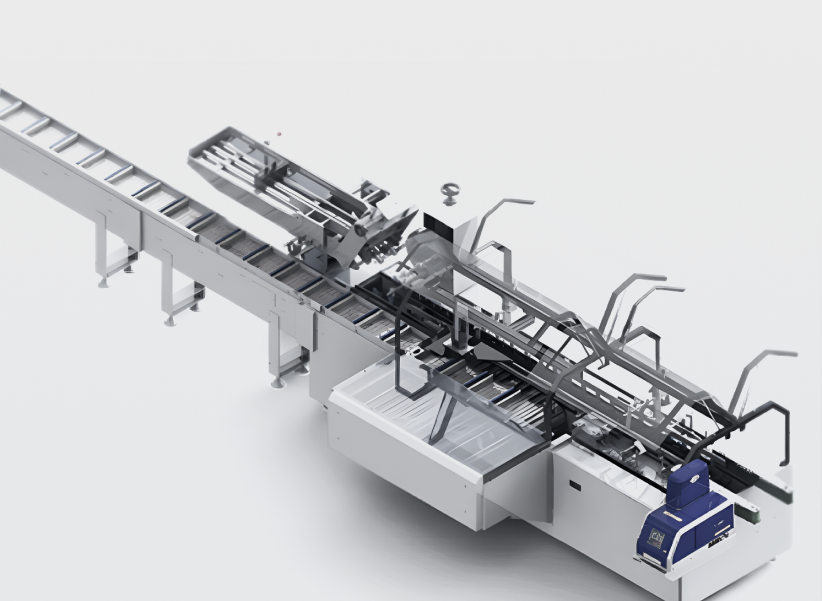

Cartoning Machine Type

  • Hot Melt
  • Flap Tuck In
  • Sleeve (Open Type)
  • Wrap Around

Samples actually applied to customers

Cartoning Machine
Pie Biscuit Gum / Candy Ice Cream Beverage Food Pharma

Pie

  • 3

Biscuit

  • 2

Gum / Candy

  • 1

Ice Cream

Beverage

Food

Pharma

Customer reliable packaging solutions

"We strives to improve our customer's production efficiency and technology
through continuous development of new technologies."
