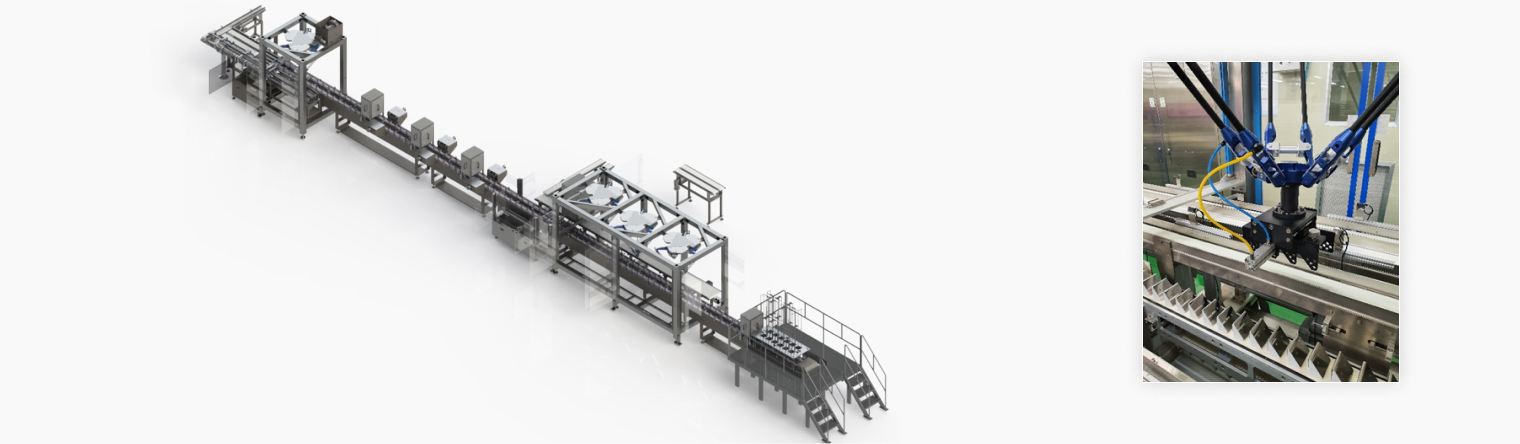

Parallel Delta RobotDirect pick-up & place by top loading method

SCROLL DOWN

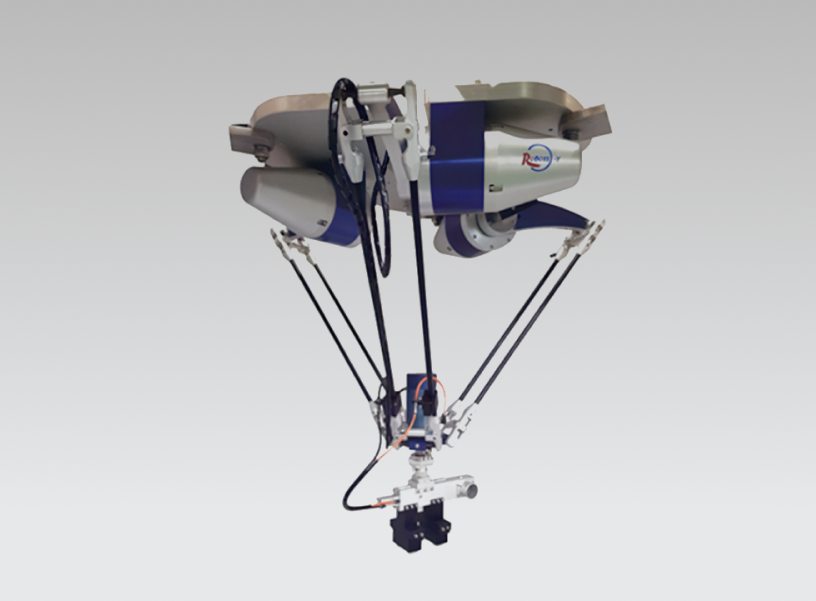

Parallel Delta Robot is used for efficient and precise automation in high-speed production lines, particularly suitable for handling lightweight products.

  • High SpeedUniformly distributes the motion load on the 4-axis robot, enabling fast and accurate transportation and assembly
  • Conveyor TrackingHigh-speed pick & place support on high-speed conveyors
  • Easy-of-use SoftwareControl the robot from the controller via ethernet with a familiar programming language
  • Vision GuidanceHigh-speed flexibility using vision and sensor

Specifications

Type
Parallel Link Type
Axis
3 or 4 Axis (X, Y, Z & Wrist)
Load
6kg
Range
800 / 900 / 1000
Cycle Time
Nor 90 / Max 120 Cycle
Precision
±0.1mm
Weight
120kg
Motor
1kw Servo Motor (4ea)
Drive Method
Servo Drive by AC Servo Motor
Supply Voltage
AC220V, DC24V
Installation
Ambient Temperature: 0-45°C / Humidity: N/A

Samples actually applied to customers

Parallel Delta Robot

Pie

  • 3

Bakery

  • 2

Ice Cream

  • 1

Food

Customer reliable packaging solutions

"We strives to improve our customer's production efficiency and technology
through continuous development of new technologies."
